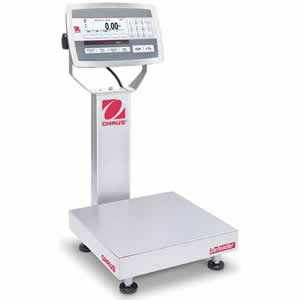

Defender 5000 Series - Stainless Steel Indicator - Semi Washdown

OHAUS next generation Defender 5000 Series consists of many different models with similar specifications. This sub-series of the Defender combines a dry-use base with the stainless steel and washdown T52XW indicator. Both indicators offer you the same functions, it just has a stronger, water resistant exnclosure for use in harsher environments.

Standard Features:

• Indicator Guides The User with On-Screen Prompts
  See results clearly on the large backlit display. The alpha-numeric keypad and function keys allow for a simplified user experience. On-screen prompts and soft keys will guide you through the operation.
• Durably Constructed To Withstand Harsh Industrial Environments
  Durably constructed with a stainless steel platform, silver-painted column, and aluminum load cell. Supports up to 6,250e NTEP and Measurement Canada certified resolution for legal-for-trade applications.
• Multiple Application Modes and High Storage Capacity for Greater Flexibility
  Features common industrial modes and supports a 50,000 item library and 1,000 user profiles which can be downloaded/uploaded for easy set-up with the included Micro SD Card. Also equipped with GLP/GMP output capability with time/date for result traceability. Alibi memory available.
• Multiple Connectivity Options for Convenient Data Transfer and Storage
  Results can be stored in the Micro SD card. Data output via built-in RS232 or optional interfaces including 2nd RS232/RS485/USB device, Ethernet, Bluetooth/WiFi, Analog Output and Discrete I/O with relays.
• Includes T52XW Indicator
  IP68 rated / NEMA 4x rated protection with housing made from 304 stainless steel with sand blasted surface treatment and stainless steel bracket.

Defender 5000 Series with TD52XW Indicator
Model	Capacity x Readability	NTEP Readability	Platform Size
D52XW12RQR1	25 lb x 0.001 lb 12.5 kg x 0.5 g	0.005 lb / 2 g	12" x 12"
D52XW25RQR1	50 lb x 0.002 lb 25 kg x 1 g	0.01 lb / 5 g	12" x 12"
D52XW50RQR1	100 lb x 0.005 lb 50 kg × 2 g	0.02 lb / 10 g	12" x 12"
D52XW12RTR1	25 lb x 0.001 lb 12.5 kg x 0.5 g	0.005 lb / 2 g	12" x 14"
D52XW25RTR1	50 lb x 0.002 lb 25 kg x 1 g	0.01 lb / 5 g	12" x 14"
D52XW50RTR1	100 lb x 0.005 lb 50 kg x 2 g	0.02 lb / 10 g	12" x 14"
D52XW50RQL2	100 lb x 0.005 lb 50 kg x 2 g	0.02 lb / 10 g	18" x 18"
D52XW125RQL2	250 lb x 0.01 lb 125 kg x 5 g	0.05 lb / 20 g	18" x 18"
D52XW50RTX2	100 lb x 0.005 lb 50 kg x 2 g	0.02 lb / 10 g	18" x 24"
D52XW125RTX2	250 lb x 0.01 lb 125 kg x 5 g	0.05 lb / 20 g	18" x 24"
D52XW250RTX2	500 lb x 0.02 lb 250 kg x 10 g	0.1 lb / 50 g	18" x 24"
D52XW50RQV3	100 lb x 0.005 lb 50 kg x 2 g	0.02 lb / 10 g	24" x 24"
D52XW125RQV3	250 lb x 0.01 lb 125 kg x 5 g	0.05 lb / 20 g	24" x 24"
D52XW250RQV3	500 lb x 0.02 lb 250 kg x 10 g	0.1 lb / 50 g	24" x 24"
D52XW500RQV3	1,000 lb x 0.05 lb 500 kg x 20 g	0.2 lb / 100 g	24" x 24"
D52XW125RTV3	250 lb x 0.01 lb 125 kg x 5 g	0.05 lb / 20 g	23.6" x 31.5"
D52XW250RTV3	500 lb x 0.02 lb 250 kg x 10 g	0.1 lb / 50 g	23.6" x 31.5"
D52XW500RTV3	1,000 lb x 0.05 lb 500 kg x 20 g	0.2 lb / 100 g	23.6" x 31.5"

Defender 5000 - No Column for Dry Use Series

The Defender 5000 can be used for both general and legal-for-trade applications. For standard industrial applications, the Defender 5000 bench scales offer durable performance at a practical price.  Results can be read easily on the Defender 5000’s large transflective dot matrix display, even in bright sunlight. The SmarText 3.0 interface will guide you through all of the Defender 5000’s unique and advanced features. With five soft keys, SmartText 3.0 makes an advanced scale very simple to use, and reduces training time for operators.

Standard Features:

• Indicator Guides The User with On-Screen Prompts
  See results clearly on the large backlit display. The alpha-numeric keypad and function keys allow for a simplified user experience. On-screen prompts and soft keys will guide you through the operation.
• Multiple Application Modes and High Storage Capacity for Greater Flexibility
  Features common industrial modes and supports a 50,000 item library and 1,000 user profiles which can be downloaded/uploaded for easy set-up with the included Micro SD Card. Also equipped with GLP/GMP output capability with time/date for result traceability. Alibi memory available.
• Multiple Connectivity Options for Convenient Data Transfer and Storage
  Results can be stored in the Micro SD card. Data output via built-in RS232 or optional interfaces including 2nd RS232/RS485/USB device, Ethernet, Bluetooth/WiFi, Analog Output and Discrete I/O with relays.

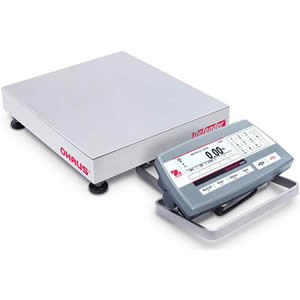

Defender 5000 Low Profile Series with TD52P
Model	Cap. x Read.	NTEP Readability	Platform Size
D52P12RQR5	25 lb × 0.001 lb 12.5 kg × 0.5 g	0.005 lb / 2 g	12" x 12"
D52P25RQR5	50 lb × 0.002 lb 25 kg × 1 g	0.01 lb / 5 g	12" x 12"
D52P50RQR5	100 lb × 0.005 lb 50 kg × 2 g	0.02 lb / 10 g	12" x 12"
D52P12RTR5	25 lb × 0.001 lb 12.5 kg × 0.5 g	0.005 lb / 2 g	12" x 14"
D52P25RTR5	50 lb × 0.002 lb 25 kg × 1 g	0.01 lb / 5 g	12" x 14"
D52P50RTR5	100 lb × 0.005 lb 50 kg × 2 g	0.02 lb / 10 g	12" x 14"
D52P50RQL5	100 lb × 0.005 lb 50 kg × 2 g	0.02 lb / 10 g	18" x 18"
D52P125RQL5	250 lb × 0.01 lb 125 kg × 5 g	0.05 lb / 20 g	18" x 18"
D52P50RTX5	100 lb × 0.005 lb 50 kg × 2 g	0.02 lb / 10 g	18" x 24"
D52P125RTX5	250 lb x 0.01 lb 125 kg x 5 g	0.05 lb / 20 g	18" x 24"
D52P250RTX5	500 lb x 0.02 lb 250 kg x 10 g	0.1 lb / 50 g	18" x 24"
D52P50RQV5	100 lb x 0.005 lb 50 kg x 2 g	0.02 lb / 10 g	24" x 24"
D52P125RQV5	250 lb x 0.01 lb 125 kg x 5 g	0.05 lb / 20 g	24" x 24"
D52P250RQV5	500 lb x 0.02 lb 250 kg x 10 g	0.1 lb / 50 g	24" x 24"
D52P125RTV5	250 lb x 0.01 lb 125 kg x 5 g	0.05 lb / 20 g	31.5" x 23.6"

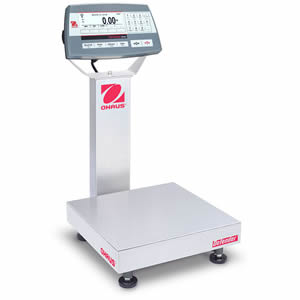

Defender 5000 Series with Column for Dry Use

OHAUS next generation Defender 5000 Series multifunctional bench scale is ideal for a multitude of applications, including production, packaging, inventory and shipping. Built durably and equipped with advanced features such as maximum configurability print output, GMP/GLP data output, library/ user management, and multiple connectivity options - the Defender 5000 is designed to simplify demanding industrial and commercial applications.

Standard Features:

• Indicator Guides The User with On-Screen Prompts
  See results clearly on the large backlit display. The alpha-numeric keypad and function keys allow for a simplified user experience. On-screen prompts and soft keys will guide you through the operation.
• Durably Constructed To Withstand Harsh Industrial Environments
  Durably constructed with a stainless steel platform, silver-painted column, and aluminum load cell. Supports up to 6,250e NTEP and Measurement Canada certified resolution for legal-for-trade applications.
• Multiple Application Modes and High Storage Capacity for Greater Flexibility
  Features common industrial modes and supports a 50,000 item library and 1,000 user profiles which can be downloaded/uploaded for easy set-up with the included Micro SD Card. Also equipped with GLP/GMP output capability with time/date for result traceability. Alibi memory available.
• Multiple Connectivity Options for Convenient Data Transfer and Storage
  Results can be stored in the Micro SD card. Data output via built-in RS232 or optional interfaces including 2nd RS232/RS485/USB device, Ethernet, Bluetooth/WiFi, Analog Output and Discrete I/O with relays.

Ohaus Defender 5000 Series
Model	Capacity x Readability	NTEP Readability	Platform Size
D52P12RQR1	25 lb x 0.001 lb 12.5 kg x 0.5 g	0.005 lb / 2 g	12" x 12"
D52P25RQR1	50 lb x 0.002 lb 25 kg x 1 g	0.01 lb / 5 g	12" x 12"
D52P50RQR1	100 lb x 0.005 lb 50 kg × 2 g	0.02 lb / 10 g	12" x 12"
D52P12RTR1	25 lb x 0.001 lb 12.5 kg x 0.5 g	0.005 lb / 2 g	12" x 14"
D52P25RTR1	50 lb x 0.002 lb 25 kg x 1 g	0.01 lb / 5 g	12" x 14"
D52P50RTR1	100 lb x 0.005 lb 50 kg x 2 g	0.02 lb / 10 g	12" x 14"
D52P50RQL2	100 lb x 0.005 lb 50 kg x 2 g	0.02 lb / 10 g	18" x 18"
D52P125RQL2	250 lb x 0.01 lb 125 kg x 5 g	0.05 lb / 20 g	18" x 18"
D52P50RTX2	100 lb x 0.005 lb 50 kg x 2 g	0.02 lb / 10 g	18" x 24"
D52P125RTX2	250 lb x 0.01 lb 125 kg x 5 g	0.05 lb / 20 g	18" x 24"
D52P250RTX2	500 lb x 0.02 lb 250 kg x 10 g	0.1 lb / 50 g	18" x 24"
D52P50RQV3	100 lb x 0.005 lb 50 kg x 2 g	0.02 lb / 10 g	24" x 24"
D52P125RQV3	250 lb x 0.01 lb 125 kg x 5 g	0.05 lb / 20 g	24" x 24"
D52P250RQV3	500 lb x 0.02 lb 250 kg x 10 g	0.1 lb / 50 g	24" x 24"
D52P500RQV3	1,000 lb x 0.05 lb 500 kg x 20 g	0.2 lb / 100 g	24" x 24"
D52P125RTV3	250 lb x 0.01 lb 125 kg x 5 g	0.05 lb / 20 g	23.6" x 31.5"
D52P250RTV3	500 lb x 0.02 lb 250 kg x 10 g	0.1 lb / 50 g	23.6" x 31.5"
D52P500RTV3	1,000 lb x 0.05 lb 500 kg x 20 g	0.2 lb / 100 g	23.6" x 31.5"

Defender 5000 Series - No Column Washdown

Resolution up to dual range 3,000e, 150% overload capacity, checkweighing display and beep, menu lock switch, selectable display languages, selectable filter, stability indicator, overload/underload indicators, selectable display controls, auto print and tare.  Built durably and equipped with advanced features such as maximum configurability print output, GMP/GLP data output, library/user management and multiple connectivity options

Standard Features:

• Indicator Guides The User with On-Screen Prompts
  See results clearly on the large backlit display. The alpha-numeric keypad and function keys allow for a simplified user experience. On-screen prompts and soft keys will guide you through the operation.
• Durably Constructed To Withstand Harsh Industrial Environments
  Durably constructed with a stainless steel platform, frame, indicator front mount, IP67 loadcell and IP68/NEMA4X indicator. Supports up to 5,000d NTEP and Measurement Canada certified resolution for legal-for-trade applications.
• Multiple Application Modes and High Storage Capacity for Greater Flexibility
  Features common industrial modes and supports a 50,000 item library and 1,000 user profiles which can be downloaded/uploaded for easy set-up with the included Micro SD card. Also equipped with GMP/GLP capability with time/date for result traceability.
• Multiple Connectivity Options for Convenient Data Transfer and Storage
  Results can be stored in the MicroSD card. Data output by built-in RS232 or optional interfaces including 2nd RS232/485/USB Device, Ethernet, Bluetooth/WiFi, Analog Output and Discrete I/O with relays.

Defender 5000 Washdown Low Profile Series
Model	Cap. x Read.	NTEP Read.	Platform
D52XW2WQS5	5 lb x 0.0002 lb 2.5 kg x 0.1 g	0.001 lb 0.5 g	10" x 10"
D52XW5WQS5	10 lb x 0.0005 lb 5 kg x 0.2 g	0.002 lb 1 g	10" x 10"
D52XW12WQS5	25 lb x 0.001 lb 12.5 kg x 0.5 g	0.005 lb 5 g	10" x 10"
D52XW12WQR5	25 lb x 0.001 lb 12.5 kg x 0.5 g	0.005 lb 5 g	12" x 12"
D52XW25WQR5	50 lb x 0.002 lb 25 kg x 1 g	0.01 lb 5 g	12" x 12"
D52XW50WQR5	100 lb x 0.005 lb 50 kg x 2 g	0.02 lb 10 g	12" x 12"
D52XW25WQL5	50 lb x 0.002 lb 25 kg x 1 g	0.01 lb 5 g	18" x 18"
D52XW50WQL5	100 lb x 0.005 lb 50 kg x 2 g	0.02 lb 10 g	18" x 18"
D52XW125WQL5	250 lb x 0.01 lb 125 kg x 5 g	0.05 lb 50 g	18" x 18"
D52XW50WTX5	100 lb x 0.005 lb 50 kg x 2 g	0.02 lb 10 g	18" x 24"
D52XW125WTX5	250 lb x 0.01 lb 125 kg x 5 g	0.05 lb 50 g	18" x 24"
D52XW250WTX5	500 lb x 0.02 lb 250 kg x 10 g	0.1 lb 50 g	18" x 24"
D52XW50WQV5	100 lb x 0.005 lb 50 kg x 2 g	0.02 lb 10 g	24" x 24"
D52XW125WQV5	250 lb x 0.01 lb 125 kg x 5 g	0.05 lb 50 g	24" x 24"

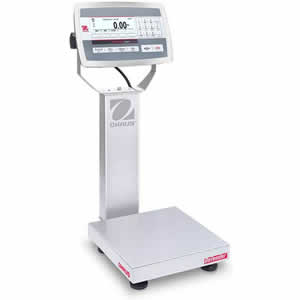

Defender 5000 Series - Washdown Indicator and Base

Featuring most common applications including Parts Counting with APW optimization, Checkweighing or Checkcounting, Percent Weighing, Filling and Dynamic Weighing or Display Hold, the Defender 5000 meets the weighing and measurement needs of practically every industrial application or manufacturing process. Many application modes eliminate the need for long and complicated manual calculations. GMP/GLP with time/date allows for traceability of results.

Standard Features:

• Indicator Guides The User with On-Screen Prompts
  See results clearly on the large backlit display. The alpha-numeric keypad and function keys allow for a simplified user experience. On-screen prompts and soft keys will guide you through the operation.
• Durably Constructed To Withstand Harsh Industrial Environments
  Durably constructed with a stainless steel platform, frame, column, IP67 loadcell and IP68/NEMA4X indicator. Supports up to 5,000d NTEP and Measurement Canada certified resolution for legal-for-trade applications.
• Multiple Application Modes and High Storage Capacity for Greater Flexibility
  Features common industrial modes and supports a 50,000 item library and 1,000 user profiles which can be downloaded/uploaded for easy set-up with the included Micro SD Card. Also equipped with GLP/GMP output capability with time/date for result traceability. Alibi memory available.
• Multiple Connectivity Options for Convenient Data Transfer and Storage
  Results can be stored in the Micro SD card. Data output via built-in RS232 or optional interfaces including 2nd RS232/RS485/USB device, Ethernet, Bluetooth/WiFi, Analog Output and Discrete I/O with relays.

Defender 5000 Washdown Series
Model	Cap. x Read.	NTEP Read.	Platform
D52XW2WQS6	5 lb x 0.0002 lb 2.5 kg x 0.1 g	0.001 lb 0.5 g	10" x 10"
D52XW5WQS6	10 lb x 0.0005 lb 5 kg x 0.2 g	0.002 lb 1 g	10" x 10"
D52XW12WQS6	25 lb x 0.001 lb 12.5 kg x 0.5 g	0.005 lb 5 g	10" x 10"
D52XW12WQR6	25 lb x 0.001 lb 12.5 kg x 0.5 g	0.005 lb 5 g	12" x 12"
D52XW25WQR6	50 lb x 0.002 lb 25 kg x 1 g	0.01 lb 5 g	12" x 12"
D52XW50WQR6	100 lb x 0.005 lb 50 kg x 2 g	0.02 lb 10 g	12" x 12"
D52XW25WQL7	50 lb x 0.002 lb 25 kg x 1 g	0.01 lb 5 g	18" x 18"
D52XW50WQL7	100 lb x 0.005 lb 50 kg x 2 g	0.02 lb 10 g	18" x 18"
D52XW125WQL7	250 lb x 0.01 lb 125 kg x 5 g	0.005 lb 2 g	18" x 18"
D52XW50WTX7	100 lb x 0.005 lb 50 kg x 2 g	0.02 lb 10 g	18" x 24"
D52XW125WTX7	250 lb x 0.01 lb 125 kg x 5 g	0.005 lb 2 g	18" x 24"
D52XW250WTX7	500 lb x 0.02 lb 250 kg x 10 g	0.1 lb 50 g	18" x 24"
D52XW50WQV8	100 lb x 0.005 lb 50 kg x 2 g	0.02 lb 10 g	24" x 24"
D52XW125WQV8	250 lb x 0.01 lb 125 kg x 5 g	0.005 lb 2 g	24" x 24"
D52XW250WQV8	500 lb x 0.02 lb 250 kg x 10 g	0.1 lb 50 g	24" x 24"
D52XW500WQV8	1,000 lb x 0.05 lb 500 kg x 20 g	0.2 lb 100 g	24" x 24"

Defender 6000 with Stainless Steel Indicator

Stainless Steel version features the i-D61XWE indicator which offers multiple connectivity options, including built-in RS232 and USB host, 2nd RS232/RS485/USB Device, Analog Output, Wi-Fi/Bluetooth, Ethernet and Discrete I/O with relays. It also has hands-free, touchless sensor to reduce contamination risk. Food Safe Design: NSF listed/certified, USDA-AMS accepted, and supports HACCP compliance. Defender 6000 series bench scales are wash-down IP68/IP69K rated with a knife proof front panel to operate reliably in harsh environments.

Standard Features:

• Stands up to harsh cleaning in processing and packaging environments with IP68 immersion/ IP69K washdown protection, 316 stainless steel construction and hermetically-sealed load cell.
• NSF certified, supporting HACCP systems with a 316 stainless steel base and sturdy indicator providing corrosion protection in food, chemical processing, and packaging.
• Versatile scales include fast weight display and multiple software modes to meet food, chemical processing, and packaging needs.
• Designed for simple connectivity in a variety of application settings.

Ohaus Defender 6000 Series with Column - Extreme Washdown Bench Scales
Model	NTEP Cap x Read	Pan Size
i-D61XWE5K1S6	10 lb x 0.002 lb 5 kg x 1 g	9.8" x 9.8"
i-D61XWE12K1R6	25 lb x 0.005 lb 12.5 kg x 5 g	11.8" x 11.8"
i-D61XWE25K1R6	50 lb x 0.01 lb 25 kg x 5 g	11.8" x 11.8"
i-D61XWE50K1L7	100 lb x 0.02 lb 50 kg x 10 g	19.7" x 15.7"
i-D61XWE150K1L7	300 lb x 0.1 lb 150 kg x 50 g	19.7" x 15.7"

Defender 6000 High Pressure Washdown

i-D61PW models offer an optional Infrared (IR) communication kit for connectivity without opening the housing. The indicator can store up to 1,000 weighing results which can be transferred to a PC or system for traceability. Food Safe Design: NSF listed/certified, USDA-AMS accepted, and supports HACCP compliance. Defender 6000 series bench scales are wash-down IP68/IP69K rated with a knife proof front panel to operate reliably in harsh environments.

Standard Features:

• Stands up to harsh cleaning in processing and packaging environments with IP68 immersion/ IP69K washdown protection, 316 stainless steel construction and hermetically-sealed load cell.
• NSF certified, supporting HACCP systems with a 316 stainless steel base and sturdy indicator providing corrosion protection in food, chemical processing, and packaging.
• Versatile scales include fast weight display and multiple software modes to meet food, chemical processing, and packaging needs.
• Designed for simple connectivity in a variety of application settings.

Ohaus Defender 6000 Front Mount Series - Extreme Washdown Bench Scales
Model	NTEP Cap x Read	Pan Size
i-D61PW5K1S5	10 lb x 0.002 lb 5 kg x 1 g	9.8" x 9.8"
i-D61PW12K1R5	25 lb x 0.005 lb 12.5 kg x 5 g	11.8" x 11.8"
i-D61PW25K1R5	50 lb x 0.01 lb 25 kg x 5 g	11.8" x 11.8"
i-D61PW50K1L5	100 lb x 0.02 lb 50 kg x 10 g	19.7" x 15.7"
i-D61PW150K1L5	300 lb x 0.1 lb 150 kg x 50 g	19.7" x 15.7"

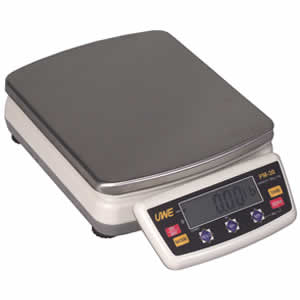

APM Series

Affordable APM bench scales are simple to operate, quality engineered for dependability and usually ship out the same day!  There's many different models to choose from for a large variety of applications.  Weigh gas cylinders, fire extinguishers or produce with an NTEP scale from UWE.  APM Series is available in 4 different weighing capacities with options available for better portability with the Oxy-Weigher or carrying case.

Standard Features:

• Large LCD display with backlight
• Heavy duty construction (stainless steel platform and ABS plastic housing)
• Light weight for portability (only 13.4 pounds)
• Low profile base (only 4.1 inches high)
• Reads in kilograms and pounds (NTEP Certified)
• Built-in rechargeable battery or external power adapter (included)
• Zero tracking
• Automatic power saver (conserves battery power)
• Low battery indicator
• Easy calibration function
• Adjustable leveling feet
• Options for display: platform, pillar or wall mounted (3 ft of cable supplied)
• Selectable auto tare function (tare range is 4.995 kg)
• Gravitational correction software

APM Series NTEP Bench Scales
Model	Capacity X Resolution	Platform Size
APM-15	30 lb x 0.01 lb	11" x 13"
APM-30	60 lb x 0.02 lb	11" x 13"
APM-60	150 lb x 0.05 lb	11" x 13"
APM-150	300 lb x 0.1 lb	11" x 13"

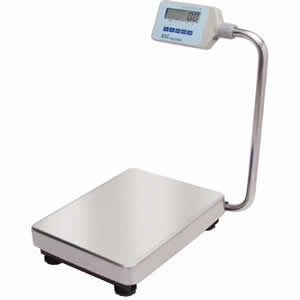

CCI220

Versatile CCi bench scale operates on AC power or a rechargeable battery for weighing flexibility. Aluminum die cast base construction has a stainless steel cover. Adjustable tower and indicator allow you to move it out of the way to accomodate large parcels or crates that may overhanging. Select from 3 different ranges that best suits your legal for trade application.

Standard Features:

• Large 1" LCD Display
• Adjustable Tower & Indicator
• Auto Cal, Auto Off, Auto Tare
• LB/KG Conversion
• 12.75" x 16.5" Stainless Steel Platform
• Aluminum Die Cast Base
• Level Bubble and Leveling Feet
• Low Battery Indicator
• AC Adapter (included)
• Rechargeable Battery (included)
• Certificate Number: 97-087A2

CCi CCi/220 Series with Adjustable Display Tower - NTEP ACCURACY CLASS III
Model	Certified Pounds	Certified Kilograms	Platform Size
CCi220/75	75 x 0.02 lb	35 kg x 10 g	12.75" x 16.5"
CCi220/150	150 x 0.05 lb	60 kg x 20 g	12.75" x 16.5"
CCi220/300	300 x 0.1 lb	150 kg x 50 g	12.75" x 16.5"

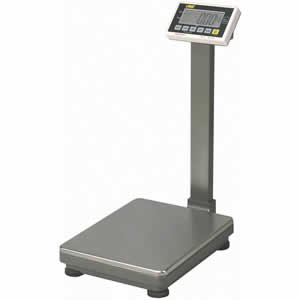

UFM Series

UFM legal for trade bench scales come in 3 different sizes which all feature large 2 inch display with backlight and offer 6,000 divisions.  3 models are available to accomodate weighing capacities from 120 lb to 600 pounds.  Save on quality quality scales that are certified for commercially weighing products for sale in farm markets, grocery stores or shipping and receiving docks.

Standard Features:

• 6,000 Divisions
• Large 2 Inch Backlit Display
• Overload and shock protection mechanism
• Heavy duty rugged construction
• Low profile, compact size
• Large backlit LCD display with wide viewing angle
• Accumulation function
• Low battery indicator / charge status indicator
• Easy calibration function
• Gravitational correction software
• Digital motion filtering

UFM Series LFT Bench Scales
Model	Capacity x Readability	Platform Size
UFM-B30	60 lb x 0.02 lb	13" x 17.7"
UFM-B60	150 lb x 0.05 lb	13" x 17.7"
UFM-B150	300 lb x 0.1 lb	13" x 17.7"
UFM-F60	120 lb x 0.02 lb	16.5" x 20.5"
UFM-F300	600 lb x 0.1 lb	16.5" x 20.5"
UFM-L120	250 lb x 0.05 lb	19.7" x 23.6"
UFM-L300	600 lb x 0.1 lb	19.7" x 23.6"
UFM-L600	1,200 lb x 0.2 lb	19.7" x 23.6"

Rice Lake CW90X Series

High pressure washdown protection makes the CW90X truly useful in the fish industry. Stainless steel construction with piezo keypad keep the checkweigher protected against scratches that would endanger the washdown capaability. Lights indicate high and low values when check weighing.

Standard Features:

• Piezo keypad consisting of ZERO, UNITS, PRINT, TARE, OVER, UNDER, ID, TARGET, ENTER, MENU, POWER
• 304 stainless steel, IP69K rated
• Prevent breather vent
• Storage for up to 50 IDs
• Unit of measure: kg, gm, lb, oz, lb/oz
• High-Intensity LED display
• Battery-backed time and date
• Two full duplex serial ports
• Configurable print formats
• Audit trail tracking
• Four configurable Digital I/O
• Reflash memory to upgrade firmware
• NTEP Certified: Indicator (COC# 08-092), Scale Base (COC# 95-072)
• 3 Year Limited Warranty

Rice Lake Weighing Systems CW90X Series Washdown Checkweighers
Model	Capacity x Resolution	Platform
CW90X-5LB	5 lb x 0.001 lb	10" x 10"
CW90X-10LB	10 lb x 0.002 lb	10" x 10"
CW90X-25LB	25 lb x 0.005 lb	12" x 12"
CW90X-50LB	50 lb x 0.01 lb	12" x 12"
CW90X-100LB	100 lb x 0.02 lb	12" x 12"
